Float Valves & Solenoid Valves

Total Tanks is proud to be a representative of Singer Valve™, a producer of the world’s highest quality automatic control valves. Singer Valve offers hundreds of valves for almost any application. Contact Total Tanks for more information on what valve is best for your application.

Float Fill Valves

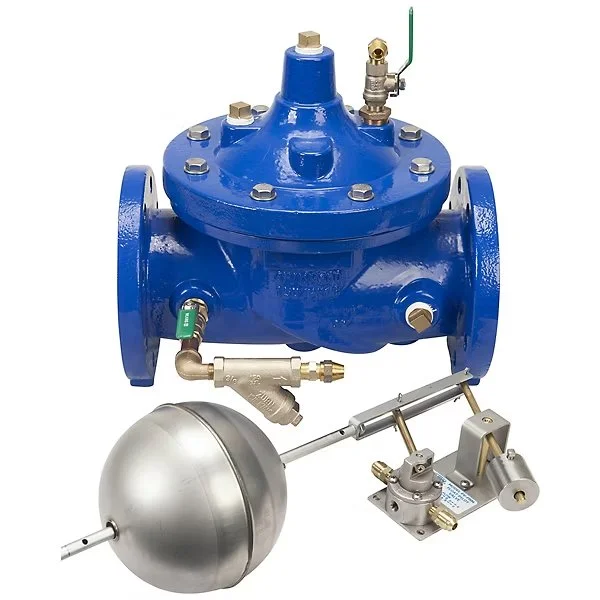

The Singer model 106-F-Type 4 and 206-F-Type 4 modulating float valves are based on the 106-PG or 206-PG main valve. They are ideal for balancing the inflow and outflow demand into the reservoir and maintaining level at the designated maximum.

The valve closes drip-tight at the maximum level and modulates to maintain the tank level. The float pilot is remotely installed at the high level in the reservoir tank. Pilot connections to the main valve are connected in the field. As the reservoir level drops the main valve is opened proportionally to increase the filling rate. Movement of the main stem alters the size of the closing restriction, interrupting the tendency of the valve to hunt.

Advantages include:

• No Overflow, Drip-Tight Close

• Adjustable Draw Down

• Easily Adjustable Level Settings

• Low Supply Pressure Options

Solenoid Fill Valves

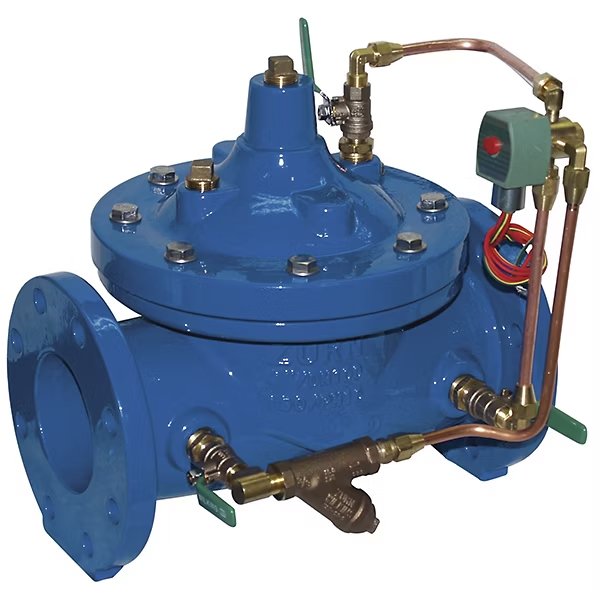

Singer models 106-SC and 206-SC solenoid control valves are based on the Singer model 106-PG or 206-PG main valve.

The solenoid pilot valve provides on-off position operation. The solenoid either admits inlet pressure into the main valve operating chamber or releases pressure from the operating chamber. The pilot system is usually piped to discharge at the valve outlet, but can be piped to discharge to drain (atmosphere).

The SC valve is available either with the main valve closed when the solenoid is de-energized (NC -Normally Closed) or with the main valve open when the solenoid is de-energized (NO- Normally Open). (NC or NO refers to the main valve, not the solenoid.)

Advantages include:

• Positive, Drip-Tight Shut-Off

• Simple, On-Off Operation

• Globe- or Angle-Style Body
